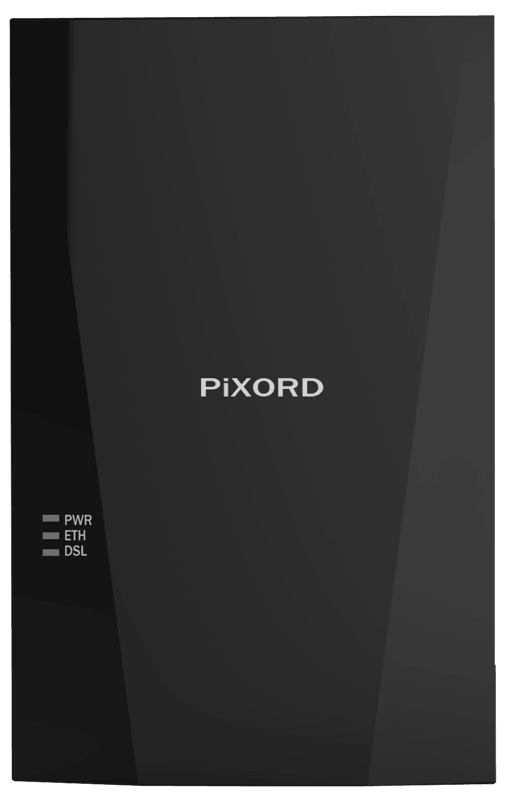

PiXORD VDM111 is a VDSL2 Bridge Modem. It fully complies with the ITU-T standards for VDSL2 and provides Internet connectivity through Ethernet RJ-45 connection.

VDM111 is a cost-efficient design and it can easily upgrade ADSL to VDSL service at a very minimal cost. The idea, Plug & Play without any installation, is not only to simplify the installation complexity, but also to save the installation cost.

VDSL2 bridge modem, Fully complies with the ITU-T VDSL2 standards G.993.2
Cost-efficient Design
Plug & Play, easy to install
10/100 Fast Ethernet

Hardware Interface
VDSL	1 x RJ-11 VDSL connector
Ethernet	1 x RJ-45 Ethernet connector
Power	1 x DC Power Jack
VDSL
Standard	VDSL2 standard ITU-T G.993.2
Profiles	8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
Data Rate	Up to 100Mbps upstream / 100Mbps downstream
Band-Plans	Conforms to NA, EUR & Swedish band-plans
Parameter Configurability	ITU-T 997.1 Compliant
Ethernet
Standard	IEEE 802.3x standards
10/100Mbps	Auto selection
MDI/MDI-X	Auto
Features
QoS	Flexible packet sorting based on EtherType, VLAN ID or VLAN priority
Appearance
Dimension (L x W x H)	102mm x 67mm x 26mm
Weight (g) Total Net	86g
Operation Environment
Operation Temperature	0°C ~ 40°C
Operation Humidity	10%~90% (non-condensing)
Storage Environment
Storage Temperature	-20°C ~ 65°C
Storage Humidity	10%~90% (non-condensing)
Certification
Certification	CE / FCC
Other
Power Adaptor	DC 5V/1A

Datasheet

Date

Version

Description

2014-07-01 EN VDM111 Datasheet(EN)
2014-07-01 CHT VDM111 Datasheet(CHT)

Quick Guide

Date

Version

Description

2014-07-01 EN VDM111 Quick Guide(EN)
2014-07-01 CHT VDM111 Quick Guide(CHT)
